Features
- Clutching Lever Designs
- Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
- UL10C 3 Hour A Label
- Non Handed Levers for Easy Field Installation
- Four screws through-bolted for added strength, providing high security and peace of mind
- Lever Security Caps to Help Prevent Undesired Lever Removal and Lever Sag After Continual Use
- Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers.
- Limited 10 Year Warranty
Finish
Satin Chrome
Function
Privacy
Series
K Series
Design
Dane
Backset
2-3/4" Backset
Strike
ASA Strike
Color Code
626/US26D
Grade
ANSI/BHMA Grade 1
Application
High Traffic; High Abuse Door Openings Demand
Warranty
10 Year
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F76
Latch Number
30-270
Strike Number
30-148
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
DAN-Dane
Strike Size
4-7/8" x 1-1/4"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL Listed
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Strike Lip
1-5/16 Inch
Product Projection
3-1/8 Inch
Trim Material
Solid Pressure Cast Zinc (Lever)
Features
Four Screws Through-Bolted for Added Strength Providing High Security and Peace of Mind; PressureReleaseTM Outside Lever Disengages when Locked to Protect Internal Mechanisms
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
5 Inch
Latch Corner
Square
Knob/Lever Size
5 Inch
Lever Style Family
Straight Return Lever
Sub-Series
K301S-DAN-626
ANSI/BHMA Standards
F76
Keyed
No
Electronic
No
Latch Type
Square Corner
UL Listing Type
UL Listed (3 Hour A Label)
Door Handing
Non-Handed
Standard Strike
1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box
Substrate Type
Brass or Steel, Zinc plated and dichromated for rust resistance. Springs are Stainless Steel.
Door Thickness Range
1-3/8" to 2-1/4"
Lock Type
Cylindrical
Duty Level
Heavy Duty
Standard Latch
1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset
Product Overview

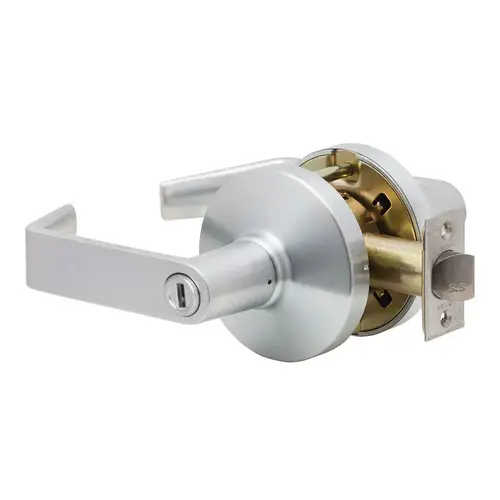

Privacy Lock, Dane Lever, Satin Chrome
High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series gets back to basics by offering the most common functions, lever styles and finishes at an affordable price. The K Series features conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which is now masterkeyed across the complete Falcon product line.
Conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
