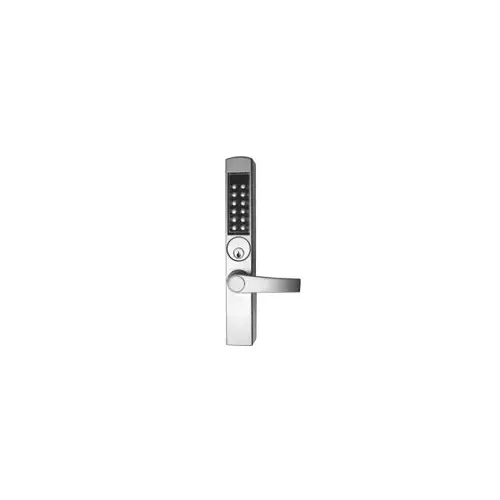

Kaba Access E3065-B-NT-26D-41 E-Plex 3000 Series Electronic Pushbutton Mortise Thumbturn Lock, Satin Chrome
Item #: E3065-B-NT-26D-41 by Kaba Access
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Chrome
Finish Description
Satin Chrome
Cylinder Type
LFIC Best and Equivalents
ADA Approved
False
Lever Style
NT-Narrow Stile Thumbturn
Product Type
Electronic Mortise Lock
Grade
ANSI/BHMA Grade 1
Application
Indoor; Outdoor
Hand
Non-Handed
Backset
31/32 Inch
Handing
Non-Handed
Warranty
3 Year Warranty
Operating Temperature
-31 to 151°F
Color Code
626/US26D
Function
Thumbturn
Door Thickness
1-3/4 inch
Standards
BHMA
Front Size
11-9/16" x 1-3/4"
Function Family
Pushbutton Lock
Minimum Stile Width
2 Inch
Rose/Escutcheon Width
1-3/4 Inch
Rose/Escutcheon Length
11-9/16 Inch
Features
Eliminates Problems and Costs Associated With Issuing, Controlling and Collecting Keys and Cards Has Up to 300 Access Codes and 9,000 Audit Events
ADA Compliant
YES
Finish Family
Satin Chrome
Manufacturer Parent
DormaKaba
Sub-Series
E3065-B-NT-26D-41
The E-Plex 3000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 300 Access Codes and 9,000 Audit Events
Features
- Locking Devices: Mortise Deadlatch retrofits inside trim for Adams Rite locks 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Also fits 8400 Mortise Exit (not included). Adapter Kit available for various manufacturers’ narrow stile Exit Devices; see accessories section.
- Includes Optional Key Override: Interchangeable Core; Mortise Shell accommodates small format—Best and equivalents (6-pin length only); core not included
- Number of Codes: 300 access codes per door
- Handing: Non-handed, easily changed in the field
- Audit Trail: The most recent 9,000 events are recorded in memory, including use of the mechanical key override
- Programming: Locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow
- Operation Modes: PIN Access and Key Override
- Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes - programmed for one-time access or “come-and-go” access for 1 to 24 hours
- Ease of Installation: No wire installation—eliminates wiring to or through the door—no risk of pinched wires
