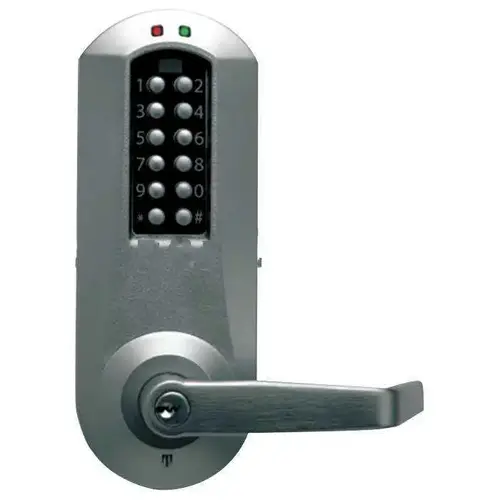

Kaba Access E5031-B-WL-26D-41Click To Copy E-Plex 5000 Series Electronic Pushbutton Cylindrical Lever Lock, Satin Chrome

E-Plex 5000 Series Electronic Pushbutton Cylindrical Lock with Winston Lever, Combination Entry and Key Override for Best and Equivalents Small Format IC Prep, 2-3/4" Backset - US26D (626) Satin Chrome Finish
E-Plex 5000 SeriesElectronic Door Locks

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Features: Access Control:

• Electronic pushbutton lock—eliminates problems and costsassociated with issuing, controlling, and collecting keys, and cards

Number of Codes:

• 100 access codes per door (upgrade to 300 viasoftware); over 100 million possible code combinations

Audit Trail:

• The most recent 9,000 lock events are recorded in memory, including use of themechanical key override. Software is required to view audit events.

Programming:

• Locks are programmed via keypad or with optional Microsoft® Excel®-based software—simplifies management of doors and users as facility's number of users and access points grow

Handing:

• Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:

• Key-in-lever cylinders, small format interchangeable cores, large formatremovable cores

Lock Function Customization:

• Locks are easily customized on site via keypad to work as various BHMA lock functions, eliminating the requirement to stock multiple locks for different applications. Built-in options include: Entry, Storeroom, Privacy, and Residence lock, (thumbturnrequired for privacy and residence functions).

Three Operation Modes:

• PIN access
• Lockout
• Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels:

• Five different levels allow who has access to specific lock functions, including:

Master Level:

• Performs all set-up and programming functions

Manager Level:

• Administers common programming functions

Access User Level:

• Entry granted with valid PIN

Service Level:

• Codes for single event or single day access, programmable in advance

Maintenance Level:

• No access is granted, but information can be uploaded/downloadedto/from the lock

Battery Operation:

• Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained ifbatteries fail

Ease of Installation:

• LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

User Parameters: Code length:

• Adjustable to accept 4 to 8 digits

Anti-tamper lockout:

• Adjustable from 3 to 9 invalid attempts with an adjustableperiod of 0 to 90 seconds

Relock time:

• Adjustable from 2 to 20 seconds

Mechanical Features: Construction:

• Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindricaldrive wear tested for extensive use in indoor and outdoor applications

Numeric Keypad:

• Vandal resistant, solid metal pushbuttons

Door Handing:

• E-Plex 5000 Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-handdoor installations—easily changed in the field
• E-Plex 5000 Exit Trim—Non-handed

Backsets:

• E-Plex 5000 Cylindrical—2 1/8" (70 mm), 2 3/8" (60 mm)
• E-Plex 5000 Mortise—2 3/4" (70 mm)
• E-Plex 5000 Exit Trim—Varies by exit device type

Latch:

• E-Plex 5000 Cylindrical—1/2" (13 mm) latch, 3/4" (19 mm) latch (optional) with three-hour UL/ULC fire rating
• E-Plex 5000 Mortise—3/4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Minimum Stile Recommended:

• 5" (127 mm)

Weight:

• E-Plex 5000 Cylindrical—9.5 lbs. (4.30 kg)
• E-Plex 5000 Exit Trim—9.5 lbs. (4.30 kg)
• E-Plex 5000 Mortise—11.5 lbs. (5.20 kg)

Key Override: Universal Key-In-Lever Cylinders:

• Includes Kaba 1599 6-pin cylinder (prepped to Kaba 90 or Schlage "C" Keyway,keyed different) and tailpieces for compatibility with:

• Abloy 5277
• Abloy 5477
• Arrow C100
• ASSA 65611
• ASSA 65691

• Corbin Russwin 2000-03
• Kaba 1539
• Kaba 1599
• Kaba Gemini 4730
• Kaba Peaks 1099

• Marks
• Medeco 20W200H1
• Sargent 10 Line
• Schlage 23-001
• Schlage Primus 20-760

Australian:

• Kaba expert 107K5, Boyd KC286

European:

• Quattro S/Expert, AP2 (5 and 6-pin)

Interchangeable Cores:

• Small format Best and equivalents (6 or 7-pin length)

Removable Cores:

• Large format ASSA, Medeco, Yale, Abloy (5 or 6-pin), Corbin Russwin, Schlage,and Sargent

Installation: Ease of Installation:

• LectroBolt eliminates wiring to or through the door—no risk of pinched wires

Door Preparation:

• E-Plex 5000 Cylindrical and E-Plex 5000 Exit Trim—ASA 161
• (Easily installs on door preparation with two additional through bore holes(wood or metal doors)
• E-Plex 5000 Mortise—ASA 86 door preparation with two additionalthrough bore holes

Items Supplied:

• E-Plex 5000 Cylindrical and E-Plex 5000 Mortise—Lock assembly, installation manual, template, quick reference guide, operations manual, and required hardware
• E-Plex 5000 Exit Trim—Lock assembly, installation manual, template, quick referenceguide, operations manual, and required hardware Exit Device and mounting hardwarenot included

Additional Items::

• Supplied with Key-in-Lever Cylinder Model Only
• E-Plex 5000 Cylindrical and E-Plex 5000 Mortise—Universal Kaba 1599 6-pincylinder with tailpiece, four additional tailpieces, and two nickel silver keys
• E-Plex 5000 Exit Trim—Universal Kaba 1599 6-pin cylinder with tailpiece, fouradditional tailpieces, nickel silver keys, and spare cylinder retainer

Exit Device Compatibility:

• Arrow S1250
• Arrow S3883F/S3800
• Black & Decker (K-2) QED111/112
• Cal Royal 9800
• Cal Royal 2200

• Corbin Russwin ED5200/5200A
• Detex 1001 BP1
• Detex 10/F10 Series
• Dorex 8500R/8500F
• Dorex 9500PR/9500FR

• Dorma 9300/F9300
• Monarch 18R*, F18R*
• Precision 21/FL21
• Sargent 2828
• Sargent 3828

• Sargent 8810E/8800
• Sargent 8888
• Von Duprin 22/22F
• Von Duprin 98/98F
• Von Duprin 99/99F

• Von Duprin XP98/99
• Yale YME2100/2100
• Yale 7100

• *(requires special K-Hub Adapter)

Optional Features :

• PC Software

• Remote Unlock

Certification and Testing: Accessibility Standard:

• Americans with Disabilities Act (ADA)

Durability:

• E-Plex 5000 Cylindrical—ANSI/BHMA A156.25, Grade 1 Certification
• E-Plex 5000 Mortise—ANSI/BHMA A156.13, Grade 1 Certification
• E-Plex 5000 Exit Trim—ANSI/BHMA A156.3, Grade 1 Certification

Fire Rating:

• Three-hour UL/ULC fire door rating for "A" labeled doors

Environmental:

• Indoor/Outdoor Approved
• Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
• Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)

Warranty:

• Three-year warranty from date of installation; built-in warranty counter in lock memory

Available Finishes: Standard Finishes:

• Satin Chrome 26D (626) housings and levers
• Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes:

• Bright Brass 03 (605) housings and levers
• Satin Brass 04 (606) housings and levers
• Bright Chrome 026 (625) housings and levers
• Dark Bronze (744–simulates 10B/613) housings and levers
• with Satin Brass (606) pushbuttons
