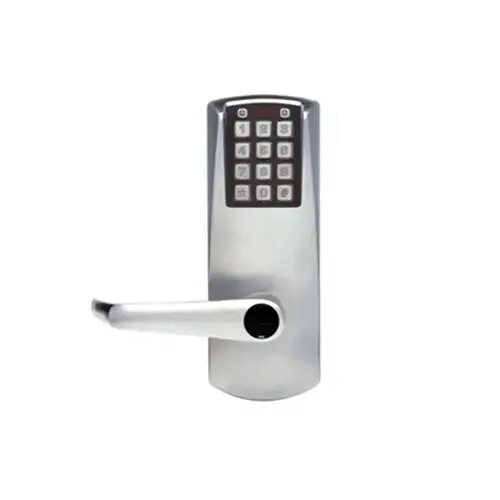

Kaba Access P201U-XS-LL-26D-41Click To Copy P2000, Cylindrica Lock Satin Chrome

PowerPlex 2000 Series Mechanical Door Locks

Based on the PowerStar Technology, which has been used and manufactured for over 10 years, the PowerPlex Series utilizes new capacitor technology to store power longer and more efficiently. There is no handle pumping required to wake up the lock and the built-in super capacitors will hold a full charge for up to 10 weeks with no activity at the lock. The lock is perfect for small to mid-sized facilities, rarely visited remote locations, retail "Employees Only" areas and military facilities, just to name a few.

Features: Access Control:

• Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by PIN code, while allowing free egress.

No Wires:

• Requires no wiring to or through the door — eliminates risk of damage from pinched wires that can result in costly callbacks.

Locking Device Options:

• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
• Exit Device: Compatible with most leading brands of Exit Devices; See list under “Exit Device Compatibility” (Exit Device and Mounting Hardware not included)
• American Standard Mortise: With 1 ¼" (32 mm) face plate; with and without dead bolt, auto dead bolt also available

Handing:

• Non-handed; pre-assembled for left-hand door installations — easily changed in the field.

Audit Trail:

• The most recent 1,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Programming:

• Locks are programmed via keypad or with optional Microsoft® Excel®-based software — simplifies management of doors and users as facility’s number of users and access points grow.

Number of Codes:

• Multiple Users — 100 Codes

Key Override (Optional):

• Optional Key-in-Lever cylinder in Schlage “C” Keyway with black cap
• Small format — Best and equivalent (6 or 7-pin length)

Operation Modes:

• PIN access
• Passage — can be toggled on/off Lockout
• Lockout

Authority Levels:

Five different levels allow who has access to specific lock functions, including:

Master Level:

• Performs all set-up and programming functions

Manager Level

• Administers common programming functions

Access User Level

• Entry granted with valid PIN

Service Level

• Codes for single event or single day access, programmable in advance

Maintenance Level

• No access is granted, information can be uploaded/downloaded to/from the lock
