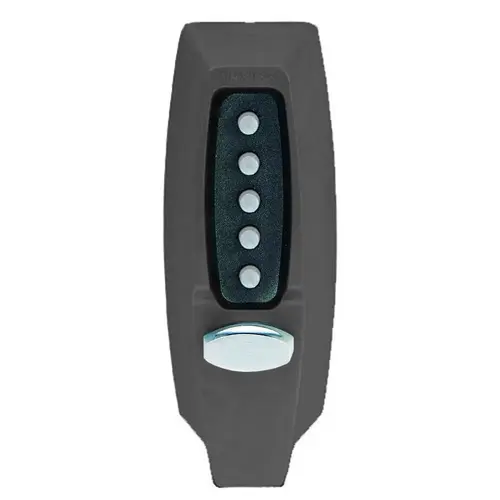

Kaba Simplex 710819Click To Copy Mechanical Pushbutton Auxiliary Lock with Thumbturn; 1" Deadbolt and 2-3/8" Backset Black Finish

Kaba Simplex 7100 Series

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

Kaba 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes.This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Finish Notes & Models

7106 model (function 6) - Black finish is black with black inside trim.
For all other black 7100 Series models, inside trim is satin chrome.
Antique White (AW) finish is a discontinued finish and available while supplies last.

Product details Features

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device Options:

• Deadbolt must be manually relocked
• Deadlocking latch relocks automatically when door closes
• Rim locking latch relocks automatically when door closes; also has latch holdback

Number of Codes: Single access code one easy-to-manage code for all users

Programming: Lock is easily programmed via keypad without removing lock from the door

Handing: Field reversible

Operation Modes:

• Pushbutton Access
• Latch Holdback (7106 only)

Economical: A cost effective access control solution

Technical Data

Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Latch:

• 1" (25 mm) tubular deadbolt
• 1/2" (13 mm) deadlocking latch
• 5/8" (16 mm) rim deadlocking latch

Backset: 23/4" (70 mm) or 23/8" (60 mm) backset

Strike:

• Models 7102 and 7108: Flat deadbolt strike plate
• Model 7104: Curved lip strike plae
• Model 7106: Box strike for in-swing doors and flat strike for out-swing doors

Minimum Stile Required: 4" (102 mm)

Installation:

• 13/8" (35 mm) diameter through bore
• 1" (25 mm) diameter cross bore
• 3/4" (19 mm) through bore
• 2 x 1/4" through bores

Door Thickness: 13/8" (35 mm) to 21/4" (57 mm), wood or metal

Durability: Weather resistant

Warranty: 1-year warranty

Finishes:

• For all models except 7106:
  • Bright Brass 03 (605)
  • Satin Chrome 26D (626)
  • Antique Copper (AC) (059)
  • Gold Vein (GV) (060)
  • Antique White (AW) (062)
  • Silver Vein (SV) (061)
  • Black 19 (676) inside trim (Satin Chrome)
  • Antique Brass 05 (609)
• Model 7106 Inside trim (Black only)
