KB Series Surface Mount 1-Channel Color Video Sub Monitor with Handset Intercom with 4 in. Color LCD Display, White

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

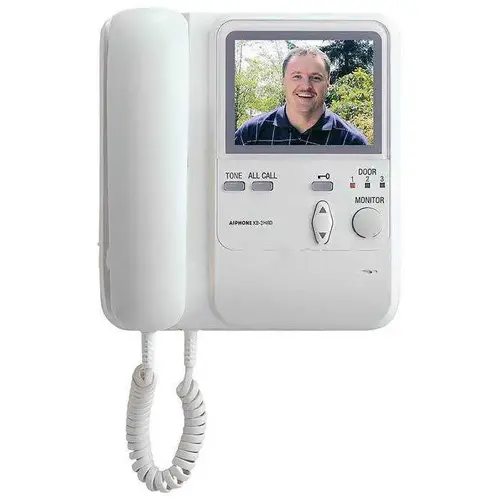

Aiphone KB-3HRD KB Series Surface Mount 1-Channel Color Video Sub Monitor with Handset Intercom with 4 in. Color LCD Display, White

Item #: KB-3HRD by Aiphone Co., Ltd

UPC #: 840067651520

See reviewsSee reviews
See reviews summary
In Stock

$1,224.77

/each
SAVE UP TO 122.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Power Source: 24V DC - Use PS-2420UL
  • Calling: Chime, image and audio approx. 30 sec., hear and see door instantly
  • Communication: Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift handset, press All Call button to call the other stations with pre-tone and voice
  • Video Monitor: 4” direct-view TFT color LCD
  • Scanning Line: 525 lines
  • Image View Area: Approx. 2’ horizontal, 3’8”~7’9” vertical at 4’3” high and at 20” in front of camera
  • Night Viewing: Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
  • Door Release: Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating
  • Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to subs: 2 x 2-cond., mid cap, solid, non-shielded
  • Distance: Master to door: 330’(22AWG) 650’(18AWG) Master to farthest sub: 165’(22AWG) 330’(18AWG) Master to IER-2: 165’(22AWG) 330’(18AWG)
  • Wire Type: Aiphone #871802

Warranty

1 year warranty

Pack Size

1

Certifications and Listings

ISO Certified

Included

No Additional Items Included

Indoor/Outdoor

Indoor

Product Depth (in.)

10.75

Product Height (in.)

4.25

Product Width (in.)

8

Standard Color Family

White

UNSPSC

46171610

Product Type

Access Control Part/Accessory

Manufacturer Parent

Aiphone

Communication Type

Handset (Full-Duplex)

Product Width

8 Inch

Sub-Series

KB-3HRD

Mounting Type

Surface Mount Directly to Wall or Desk Mount Using MCW-S/A

Product Height

4-1/4 Inch

Features

Internal All Call; Chime and Receiver Volume Control; Optional Selective Door Release With RY-3DL; Two-Way Communication Between Inside Stations; Video Identification and Monitoring With 4" Screen; Instant Voice Call-in With Image

Product Material

Fire Resistant ABS Plastic

Power Consumption

260mA Maximum; Standby 80mA

Product Length

10-3/4 Inch

Series

KB Series

Product Overview
KB-3HRD Sub Monitor with Handset Features:
  • Internal All Call
  • Chime and receiver volume control
  • Optional selective door release with RY-3DL
  • Two-way communication between inside stations
  • Video identification and monitoring with 4″ screen
  • Instant voice call-in with image
  • Built-in illumination for low light conditions
  • Selective Call
