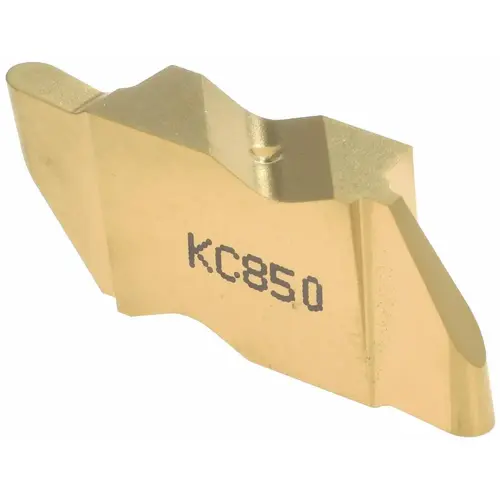

Grooving Insert: NRP3047 KC850, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1114866-XCP5 Grooving Insert: NRP3047 KC850, Solid Carbide - pack of 5

Item #: 1114866-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Series

Top Notch

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0469

Material Grade

C5

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.0941

Maximum Depth of Cut (Decimal Inch)

0.1500

Multi-use Tool

No

Rake

Positive

Insert Hand

Right Hand

Rake Angle

5

Full Radius

Yes

Insert Style

NRP

Included Angle Degree

55

Maximum Depth of Cut (mm)

3.81

Manufacturer Grade

KC850

Maximum Depth Of Cut Range (Decimal Inch)

0.1500 to 0.2000

Maximum Depth Of Cut Range (mm)

3.00 to 4.00

MSC/Manufacturer Number

NRP3047R

Corner Radius (mm)

1.19

Cutting Width (mm)

2.39

Insert Height (Decimal Inch)

0.3440

Product Overview
Grooving Insert: NRP3047 KC850, Solid Carbide TiC, TiCN & TiN Finish, Right Hand, 2.39 mm Cutting Width, 3.81 mm Max Depth, Series Top Notch
