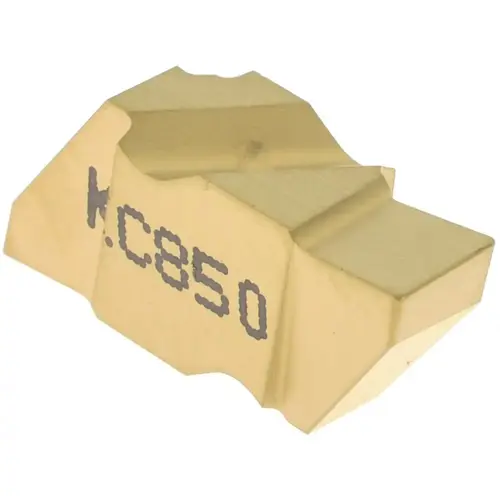

Grooving Insert: NGP2125 KC850, Solid Carbide TiC

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1114931 Grooving Insert: NGP2125 KC850, Solid Carbide TiC

Item #: 1114931 by Kennametal

See reviewsSee reviews
See reviews summary

$53.76

/each
SAVE UP TO 5.38
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Series

Top Notch

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0075

Material Grade

C5

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1252

Lead Angle

3

Maximum Depth of Cut (Decimal Inch)

0.1098

Multi-use Tool

No

Rake

Positive

Insert Hand

Left Hand

Rake Angle

5

Full Radius

No

Insert Style

NGP

Included Angle Degree

55

Maximum Depth of Cut (mm)

2.79

Manufacturer Grade

KC850

Maximum Depth Of Cut Range (Decimal Inch)

0.1000 to 0.1500

Maximum Depth Of Cut Range (mm)

2.00 to 3.00

MSC/Manufacturer Number

NGP2125L

Corner Radius (mm)

0.19

Cutting Width (mm)

3.18

Insert Height (Decimal Inch)

0.2190

Product Overview
Grooving Insert: NGP2125 KC850, Solid Carbide TiC, TiCN & TiN Finish, Left Hand, 3.18 mm Cutting Width, 2.79 mm Max Depth, Series Top Notch
