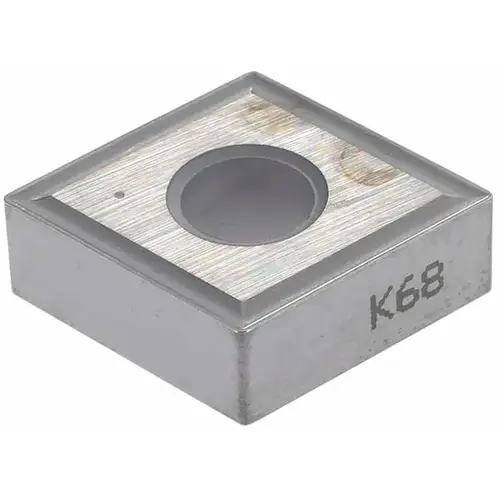

Kennametal 1160018-XCP5 Turning Insert: CNMG431 K68, Solid Carbide - pack of 5

Item #: 1160018-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$106.38

/package
SAVE UP TO 10.64
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1160018

Material Grade

C3

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Common

Insert Style

CNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

K68

ISO Size Code

120404

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

431

ISO Insert Code

CNMG120404

Proprietary Coating Designation

Uncoated

ANSI Insert Code

CNMG431

Product Overview
Turning Insert: CNMG431 K68, Solid Carbide Uncoated, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series KENLOC
