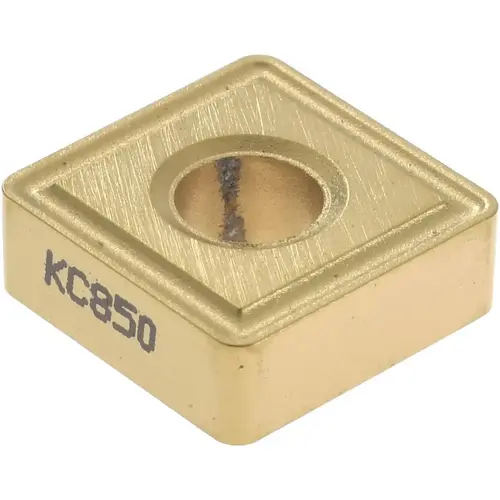

Kennametal 1160247 Turning Insert: SNMG322 KC850, Solid Carbide TiC

Item #: 1160247 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$18.00

/each
SAVE UP TO 1.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 205 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

1160247

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

S - Square

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

S

Chip Breaker

Common

Secondary Workpiece Material Code

K

Insert Style

SNMG

Insert Size Code

322

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Insert Length (Inch)

3/8

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

KC850

ISO Size Code

090308

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

322

ISO Insert Code

SNMG090308

Proprietary Coating Designation

Multilayer Coating

Iso Code

SNMG322

ANSI Insert Code

SNMG322

Product Overview
Turning Insert: SNMG322 KC850, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series KENLOC
