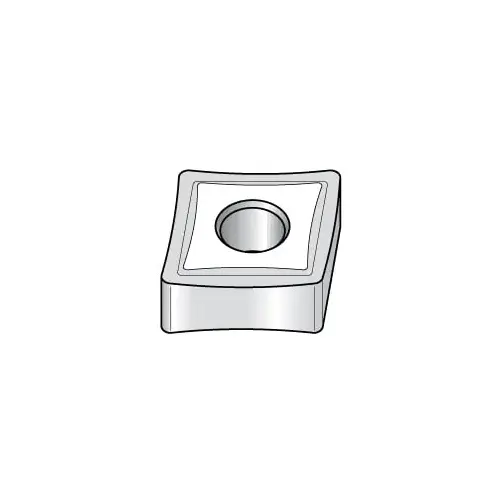

Kennametal 1161148-XCP5 Turning Insert: CNMP433 K68, Solid Carbide - pack of 5

Item #: 1161148-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

1161148

Material Grade

C3

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

Common

Insert Style

CNMP

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

K68

ISO Size Code

120412

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

433

ISO Insert Code

CNMP120412

Proprietary Coating Designation

Uncoated

ANSI Insert Code

CNMP433

Product Overview
Turning Insert: CNMP433 K68, Solid Carbide Uncoated, Neutral, 12.9 mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series KENLOC
