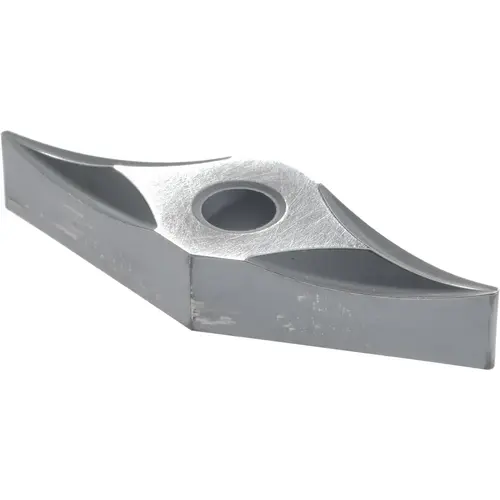

Kennametal 1161203-XCP5 Turning Insert: VNMS331 K68, Solid Carbide - pack of 5

Item #: 1161203-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$130.65

/package
SAVE UP TO 13.06
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1161203

Material Grade

C3

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.3076

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.61

Corner Radius (Inch)

1/64

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

V

Chip Breaker

Common

Insert Style

VNMS

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

K68

ISO Size Code

160404

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

331

ISO Insert Code

VNMS160404

Proprietary Coating Designation

Uncoated

ANSI Insert Code

VNMS331

Product Overview
Turning Insert: VNMS331 K68, Solid Carbide Uncoated, Neutral, 16.61 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series KENLOC
