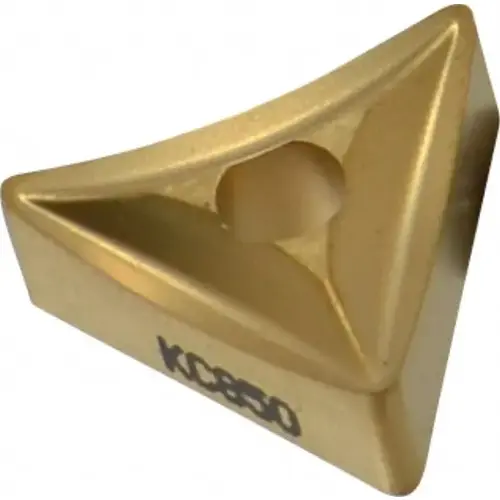

Kennametal 1161350 Turning Insert: TNMS332 KC850, Solid Carbide TiC

Item #: 1161350 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$21.91

/each
SAVE UP TO 2.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0313

ANSI Insert Code

TNMS332

Proprietary Coating Designation

Multilayer Coating

ISO Insert Code

TNMS160408

ANSI Size Code

332

Length Range (Decimal Inch)

0.6000 - 0.6500

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

ISO Size Code

160408

Manufacturer Grade

KC850

Chip Breaker Operation

Medium Machining

Maximum Depth of Cut (mm)

1.25

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Multi-Use Application

Turning

Inscribed Circle (Inch)

3/8

Relief Angle

0

Hole Diameter (Decimal Inch)

0.1500

Tolerance Code

M

Insert Size Code

332

Insert Style

TNMS

Secondary Workpiece Material Code

K

Chip Breaker

Common

Insert Shape Code

T

Full Radius

No

Rake Angle

20

Clearance Code

N

Insert Shape

T - Triangle

Corner Radius (Inch)

1/32

Insert Length (mm)

16.50

Inscribed Circle (Decimal Inch)

0.3750

Wiper Edge

No

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.0492

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.6496

Insert Holding Method

Clamp

Coating Classification

CVD

Width (Decimal Inch - 4 Decimals)

0.6496

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

1161350

Product Overview
Turning Insert: TNMS332 KC850, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series KENLOC
