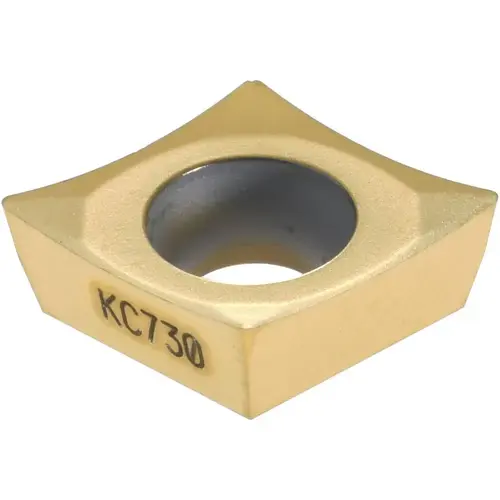

Kennametal 1161911 Turning Insert: CPGT32.51HP KC730, Solid Carbide TiN

Item #: 1161911 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$30.20

/each
SAVE UP TO 3.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 205 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1161911

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3808

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.67

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Rake Angle

15

Full Radius

No

Insert Shape Code

C

Chip Breaker

HP

Secondary Workpiece Material Code

M

Insert Style

CPGT

Insert Size Code

3251

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KC730

ISO Size Code

09T304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

3251

ISO Insert Code

CPGT09T304

Proprietary Coating Designation

TiN

ANSI Insert Code

CPGT3251

Product Overview
Turning Insert: CPGT32.51HP KC730, Solid Carbide TiN Coated, Neutral, 9.67 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Screw-On
