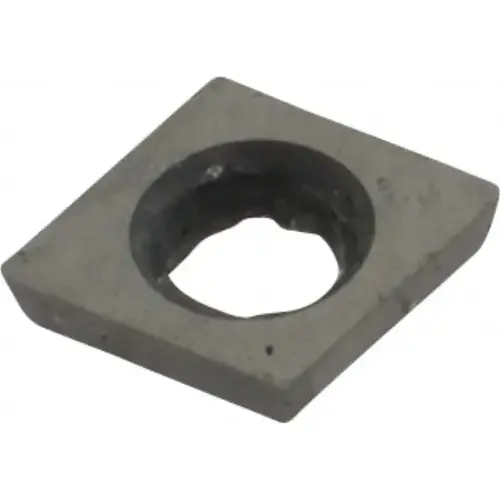

Kennametal 1162192 Turning Insert: CDHB1.20.60.5 K313, Solid Carbide Bright/Uncoated

Item #: 1162192 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$25.81

/each
SAVE UP TO 2.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 153 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Manufacturer Grade

K313

Maximum Depth of Cut (mm)

1.25

Hole Diameter (Mm) ( - 0 Decimals)

2.13

Inscribed Circle (Inch)

5/32

Relief Angle

15

Hole Diameter (Decimal Inch)

0.0840

Insert Size Code

120605

Insert Style

CDHB

Rake Angle

0

Insert Shape

Diamond

Corner Radius (Inch)

1/128

Inscribed Circle (Decimal Inch)

0.1563

Insert Hand

Neutral

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.0492

Insert Holding Method

Screw

Width (Decimal Inch - 4 Decimals)

0.1563

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

N

Primary Workpiece Material

Non-Ferrous Metal

Material Grade

C3

Manufacturers Catalog Number

1162192

Length (Decimal Inch - 4 Decimals)

0.1587

Corner Radius (Decimal Inch)

0.0079

Coating/Finish

Bright/Uncoated

Coating Process

Uncoated

Series

Screw-On

Insert Material

Carbide

Included Angle

80

Chipbreaker

Flat Top

Standards

ANSI

Number of Cutting Edges

2

Length (mm)

4.30

Product Overview
Turning Insert: CDHB1.20.60.5 K313, Solid Carbide Uncoated, Neutral, 4.03 mm Long, 5/32" Inscribed Circle, 0.0079" Corner Radius, 80 degree Diamond, Series Screw-On
