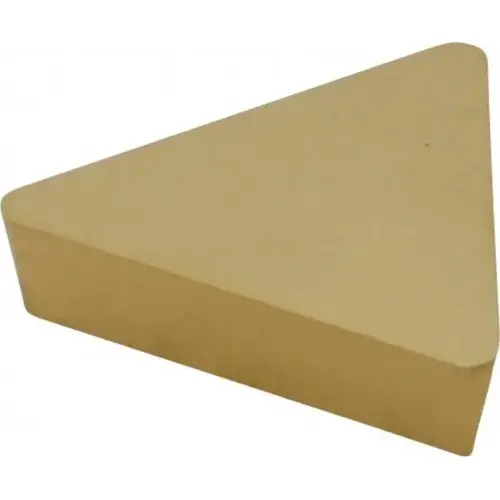

Kennametal 1162780 Turning Insert: TPU433 KC850, Solid Carbide TiC

Item #: 1162780 by Kennametal

See reviewsSee reviews
See reviews summary

$32.81

/each
SAVE UP TO 3.28
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENDEX

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

1162780

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.8661

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Corner Radius (Inch)

3/64

Insert Shape

T - Triangle

Clearance Code

P

Rake Angle

0

Full Radius

No

Insert Shape Code

T

Chip Breaker

Flat Top

Secondary Workpiece Material Code

K

Insert Style

TPU

Insert Size Code

433

Tolerance Code

U

Relief Angle

11

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Flat Top

Manufacturer Grade

KC850

ISO Size Code

220412

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

433

ISO Insert Code

TPU220412

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

TPU433

Product Overview
Turning Insert: TPU433 KC850, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 22 mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 60 degree Triangle, Series KENDEX
