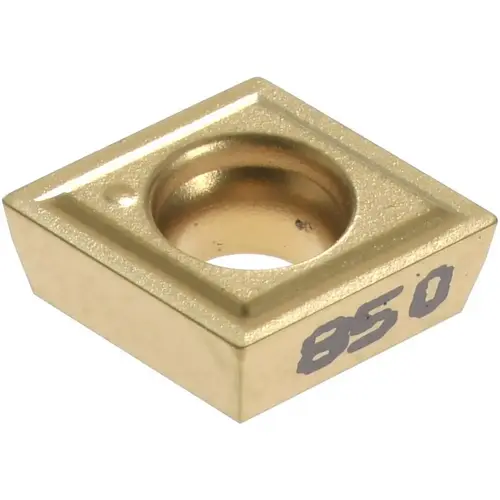

Kennametal 1163094 Turning Insert: CPGM21.50.5 KC850, Solid Carbide TiC

Item #: 1163094 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$25.63

/each
SAVE UP TO 2.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 178 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

1163094

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2539

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

6.45

Corner Radius (Inch)

1/128

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Rake Angle

5

Full Radius

No

Insert Shape Code

C

Chip Breaker

Common

Secondary Workpiece Material Code

K

Insert Style

CPGM

Insert Size Code

21505

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

KC850

ISO Size Code

060202

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Length Range (Decimal Inch)

0.0000 - 0.3000

ANSI Size Code

21505

ISO Insert Code

CPGM060202

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CPGM21505

Product Overview
Turning Insert: CPGM21.50.5 KC850, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 6.45 mm Long, 1/4" Inscribed Circle, 0.0079" Corner Radius, 80 degree Diamond, Series Screw-On
