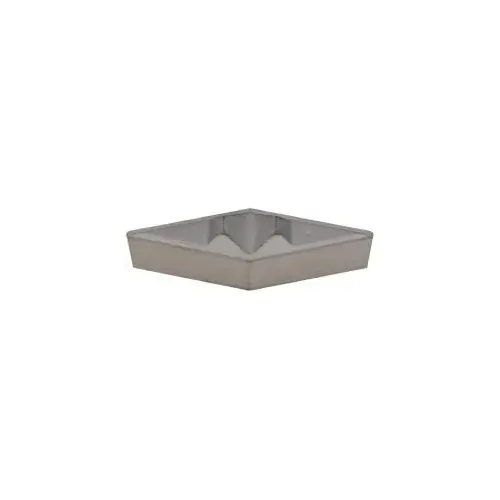

Profiling Insert: VPGR332 K68, Solid Carbide WC-Co

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1163327 Profiling Insert: VPGR332 K68, Solid Carbide WC-Co

Item #: 1163327 by Kennametal

UPC #: 063492526900

See reviewsSee reviews
See reviews summary
In Stock

$39.32

/each
SAVE UP TO 3.93
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 380 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Parallelogram

Applications

Profiling

Number of Cutting Edges

2

Standards

VPGR332

Chipbreaker

Common

Included Angle

35

Thickness (mm)

4.76

Insert Material

Carbide

Series

Top Not

Coating Process

Uncoated

Coating/Finish

WC-Co

Corner Radius (Decimal Inch)

0.0312

Material Grade

Fine Grain

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6540

Maximum Depth of Cut (Decimal Inch)

0.2180

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Rake Angle

10

Insert Style

VPGR

Insert Size Code

332

Hole Diameter (Decimal Inch)

0.0000

Relief Angle

8

Inscribed Circle (Inch)

3/8

Manufacturer Grade

K68

Inscribed Circle (mm)

9.53

Side Length (mm)

16.61

MSC/Manufacturer Number

VPGR332

Side Length (Decimal Inch)

0.6540

Corner Radius (mm)

0.79

Iso Code

VCGR160408

Insert Height (Decimal Inch)

0.1875

Product Overview
Profiling Insert: VPGR332 K68, Solid Carbide 3/8" Inscribed Circle, 3/16" Thick, 1/32" Corner Radius, Series Top Notch
