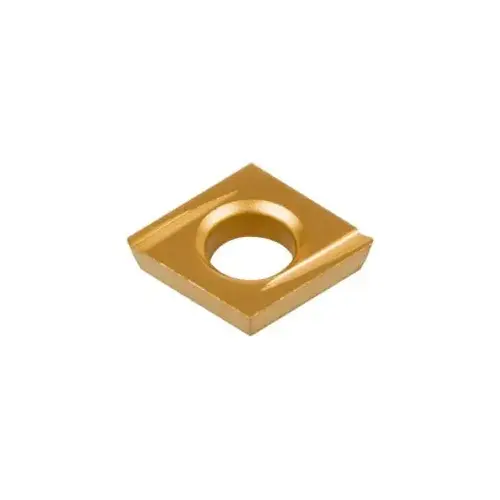

Turning Insert: CDHH120605L KC730, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1175020-XCP5 Turning Insert: CDHH120605L KC730, Solid Carbide - pack of 5

Item #: 1175020-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$129.05

/package
SAVE UP TO 12.91
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Manufacturer Grade

KC730

Maximum Depth of Cut (mm)

1.25

Hole Diameter (Mm) ( - 0 Decimals)

2.10

Inscribed Circle (Inch)

5/32

Relief Angle

15

Hole Diameter (Decimal Inch)

0.0840

Insert Size Code

120605

Insert Style

CDHH

Secondary Workpiece Material Code

M

Insert Shape

Diamond

Corner Radius (Inch)

1/128

Inscribed Circle (Decimal Inch)

0.1563

Insert Hand

Left Hand

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.0492

Insert Holding Method

Screw

Width (Decimal Inch - 4 Decimals)

0.1563

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C2

Manufacturers Catalog Number

1175020

Length (Decimal Inch - 4 Decimals)

0.1587

Corner Radius (Decimal Inch)

0.0079

Coating/Finish

TiN

Coating Process

PVD

Series

Screw-On

Insert Material

Carbide

Included Angle

80

Chipbreaker

Common

Standards

ANSI

Number of Cutting Edges

2

Length (mm)

4.30

Product Overview
Turning Insert: CDHH120605L KC730, Solid Carbide TiN Coated, Left Hand, 4.03 mm Long, 5/32" Inscribed Circle, 0.0079" Corner Radius, 80 degree Diamond, Series Screw-On
