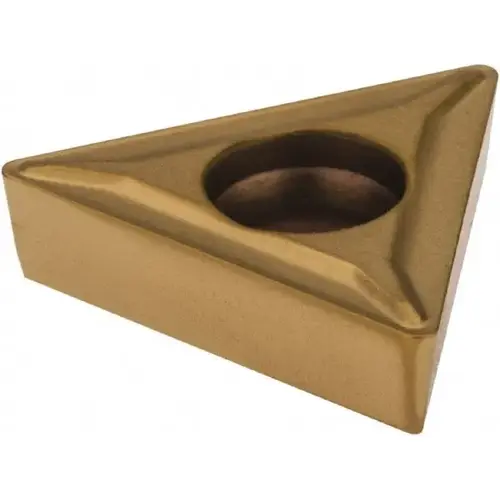

Kennametal 1198185-XCP10 Turning Insert: TCMT215111 KT315, Cermet - pack of 10

Item #: 1198185-XCP10 by Kennametal

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Cermet

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1198185

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4331

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4331

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.00

Corner Radius (Inch)

1/64

Insert Shape

T - Triangle

Clearance Code

C

Rake Angle

5

Full Radius

No

Insert Shape Code

T

Chip Breaker

11

Insert Style

TCMT

Insert Size Code

2151

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KT315

ISO Size Code

110204

Grade Characteristics

Steel (P) - High Wear-Resistance

Length Range (Decimal Inch)

0.4000 - 0.5000

ANSI Size Code

2151

ISO Insert Code

TCMT110204

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

TCMT2151

Product Overview
Turning Insert: TCMT215111 KT315, Cermet TiN, TiCN & TiN Coated, Neutral, 11 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series Screw-On
