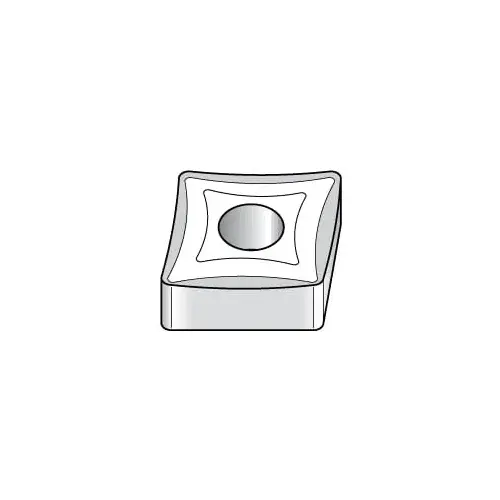

Kennametal 1560801 Turning Insert: CNMS642 KC5410, Solid Carbide TiB2

Item #: 1560801 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$45.55

/each
SAVE UP TO 4.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

3/4

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.2500

Side Clearance

Negative

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0492

ISO Insert Code

CNMS190608

Maximum Depth of Cut (mm)

1.25

Grade Characteristics

Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Width (Decimal Inch - 4 Decimals)

0.7500

Relief Angle

0

Cutting Edge Style

Honed

Clearance Code

N

Rake

Negative

Material Grade

C3

ANSI Insert Code

CNMS642

Insert Length (Decimal Inch)

0.7616

Insert Holding Method

Clamp

Coating/Finish

TIB2

Rake Angle

20

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

CNMS

Manufacturers Catalog Number

1560801

ANSI Size Code

642

Insert Hand

Neutral

Proprietary Coating Designation

TiB2

Manufacturer Grade

KC5410

Inscribed Circle (Inch)

3/4

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

19.34

Coating Process

PVD

Primary Workpiece Material

Non-Ferrous Metal

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0313

Insert Thickness (Inch)

1/4

Hole Diameter (Decimal Inch)

0.3125

Chip Breaker

Common

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.7000 - 10.0000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

PVD

ISO Size Code

190608

Wiper Edge

No

Insert Size Code

642

Included Angle

80

Number of Cutting Edges

4

Series

KENLOC

Hole Diameter (Mm) ( - 0 Decimals)

7.93

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Medium Machining

Primary Workpiece Material Code

N

Product Overview
Turning Insert: CNMS642 KC5410, Solid Carbide TiB2 Coated, Neutral, 19.34 mm Long, 3/4" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series KENLOC
