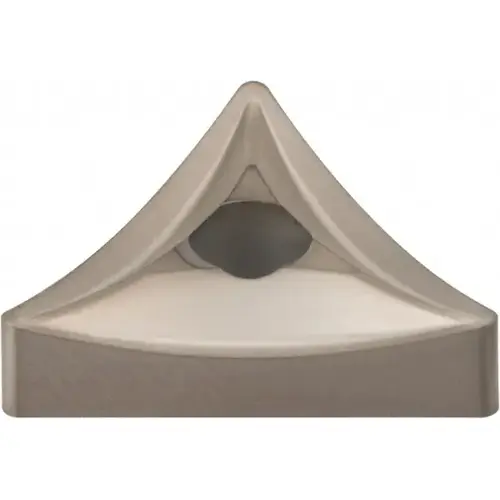

Kennametal 1560829 Turning Insert: TNMS432 KC5410, Solid Carbide TiB2

Item #: 1560829 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$27.39

/each
SAVE UP TO 2.74
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 25 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TIB2

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

1560829

Material Grade

C3

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.8661

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

T

Chip Breaker

Common

Insert Style

TNMS

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

KC5410

ISO Size Code

220408

Grade Characteristics

Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

432

ISO Insert Code

TNMS220408

Proprietary Coating Designation

TiB2

ANSI Insert Code

TNMS432

Product Overview
Turning Insert: TNMS432 KC5410, Solid Carbide TiB2 Coated, Neutral, 22 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series KENLOC
