Profiling Insert: VPGR331 KC5010, Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

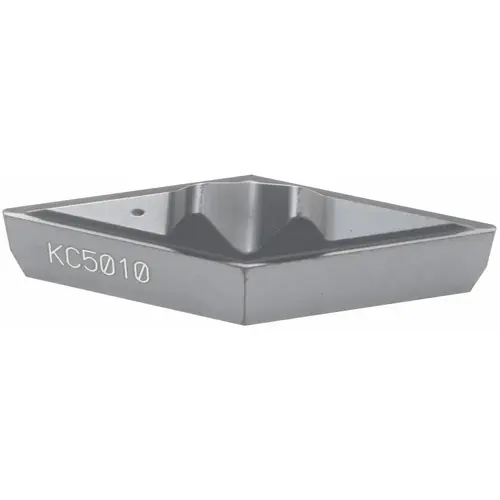

Kennametal 1849301-XCP5 Profiling Insert: VPGR331 KC5010, Carbide - pack of 5

Item #: 1849301-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$234.59

/package
SAVE UP TO 23.46
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 184 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Height (Decimal Inch)

0.1875

Iso Code

VCGR160404

Corner Radius (mm)

0.40

Side Length (Decimal Inch)

0.6538

MSC/Manufacturer Number

VPGR331

Side Length (mm)

16.61

Inscribed Circle (mm)

9.53

Manufacturer Grade

KC5010

Inscribed Circle (Inch)

3/8

Relief Angle

8

Hole Diameter (Decimal Inch)

0.0000

Insert Size Code

331

Insert Style

VPGR

Rake Angle

10

Inscribed Circle (Decimal Inch)

0.3750

Insert Hand

Neutral

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.2179

Insert Length (Decimal Inch)

0.6538

Insert Holding Method

Clamp

Coating Classification

PVD

Width (Inch)

3/8

Width (Decimal Inch - 4 Decimals)

0.3750

Vendor Drop Ship

N

UNSPSC Code

23242105

Thickness (Inch)

3/16

Thickness (Decimal Inch - 4 Decimals)

0.1875

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P10

Corner Radius (Decimal Inch)

0.0156

Coating/Finish

AlTiN

Coating Process

PVD

Series

Top Not

Insert Material

Carbide

Thickness (mm)

4.76

Included Angle

35

Chipbreaker

Common

Standards

VPGR331

Number of Cutting Edges

2

Applications

Profiling

Shape

Parallelogram

Product Overview
Profiling Insert: VPGR331 KC5010, Carbide 3/8" Inscribed Circle, 3/16" Thick, 0.40 mm Corner Radius, Series Top Notch
