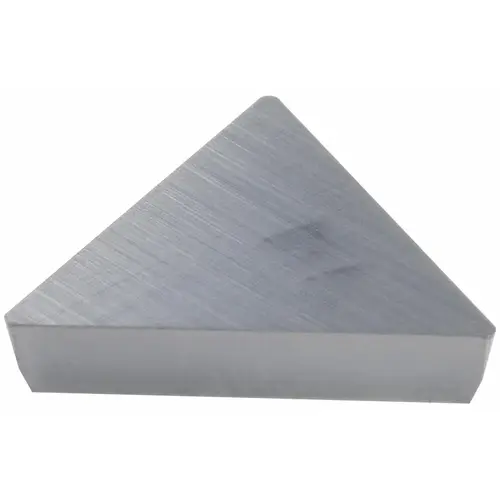

Kennametal 1865534 Turning Insert: TPG321 KC5010, Solid Carbide TiAlN

Item #: 1865534 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$26.54

/each
SAVE UP TO 2.65
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 621 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENDEX

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1865534

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6495

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6495

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.50

Corner Radius (Inch)

1/64

Insert Shape

T - Triangle

Clearance Code

P

Rake Angle

0

Full Radius

No

Insert Shape Code

T

Chip Breaker

Flat Top

Secondary Workpiece Material Code

N

Insert Style

TPG

Insert Size Code

321

Tolerance Code

G

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Flat Top

Manufacturer Grade

KC5010

ISO Size Code

160304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

321

ISO Insert Code

TPG160304

ANSI Insert Code

TPG321

Product Overview
Turning Insert: TPG321 KC5010, Solid Carbide TiAlN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series KENDEX
