Turning Insert: RCMT325 KC5010, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

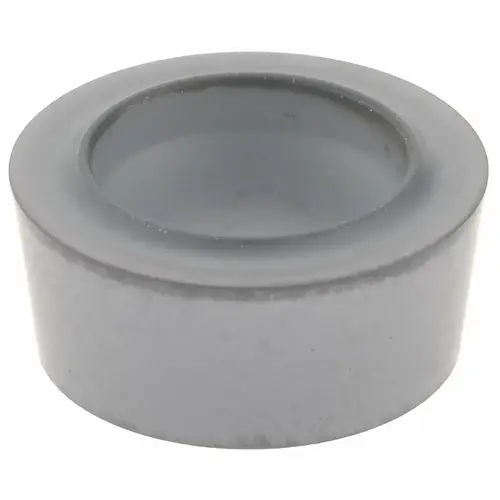

Kennametal 1866019 Turning Insert: RCMT325 KC5010, Solid Carbide TiAlN

Item #: 1866019 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$20.02

/each
SAVE UP TO 2.00
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

360

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.1875

Manufacturers Catalog Number

1866019

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

3/16

Insert Shape

R - Round

Clearance Code

C

Full Radius

Yes

Insert Shape Code

R

Chip Breaker

Common

Secondary Workpiece Material Code

N

Insert Style

RCMT

Insert Size Code

32

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Insert Length (Inch)

3/8

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

KC5010

ISO Size Code

097300

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

32.5

ISO Insert Code

RCMT097300

ANSI Insert Code

RCMT32.5

Product Overview
Turning Insert: RCMT325 KC5010, Solid Carbide TiAlN Coated, Neutral, 3/8" Inscribed Circle, Series Screw-On
