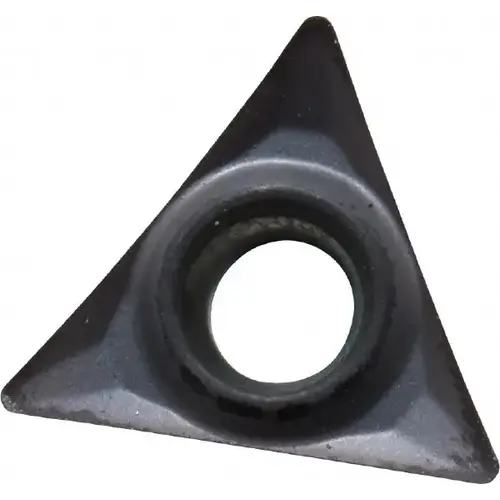

Kennametal 1867037 Turning Insert: TPGT2151HP KC5025, Solid Carbide TiAlN

Item #: 1867037 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$28.43

/each
SAVE UP TO 2.84
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 453 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Chip Breaker

HP

Insert Shape Code

T

Full Radius

No

Rake Angle

15

Clearance Code

P

Insert Shape

T - Triangle

Corner Radius (Inch)

1/64

Insert Length (mm)

11.00

Inscribed Circle (Decimal Inch)

0.2500

Wiper Edge

No

Insert Hand

Neutral

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.0492

Insert Thickness (Inch)

3/32

Insert Thickness (Decimal Inch)

0.0938

Insert Length (Decimal Inch)

0.4331

Insert Holding Method

Screw

Coating Classification

PVD

Width (Decimal Inch - 4 Decimals)

0.4331

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Stainless Steel

Material Grade

C2

Manufacturers Catalog Number

1867037

Corner Radius (Decimal Inch)

0.0156

Coating/Finish

TiAlN

Coating Process

PVD

Side Clearance

Positive

Series

Screw-On

Insert Material

Carbide

Included Angle

60

Standards

ANSI

Number of Cutting Edges

3

Cutting Edge Style

Honed

ANSI Insert Code

TPGT2151

ISO Insert Code

TPGT110204

ANSI Size Code

2151

Length Range (Decimal Inch)

0.4000 - 0.5000

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

ISO Size Code

110204

Manufacturer Grade

KC5025

Chip Breaker Operation

Finishing

Maximum Depth of Cut (mm)

1.25

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Multi-Use Application

Turning

Inscribed Circle (Inch)

1/4

Relief Angle

11

Hole Diameter (Decimal Inch)

0.1142

Tolerance Code

G

Insert Size Code

2151

Insert Style

TPGT

Secondary Workpiece Material Code

S

Product Overview
Turning Insert: TPGT2151HP KC5025, Solid Carbide TiAlN Coated, Neutral, 11 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series Screw-On
