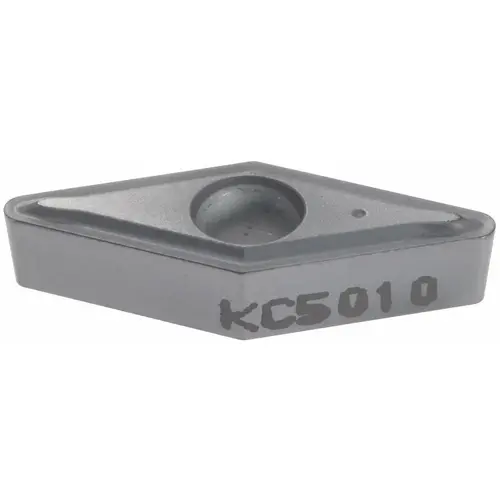

Turning Insert: VBMT222LF KC5010, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1871035 Turning Insert: VBMT222LF KC5010, Solid Carbide TiAlN

Item #: 1871035 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$32.77

/each
SAVE UP TO 3.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 309 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

1871035

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.8718

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.70

Corner Radius (Inch)

1/32

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

B

Rake Angle

5

Full Radius

No

Insert Shape Code

V

Chip Breaker

LF

Secondary Workpiece Material Code

N

Insert Style

VBMT

Insert Size Code

222

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

5

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KC5010

ISO Size Code

110308

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

222

ISO Insert Code

VBMT110308

ANSI Insert Code

VBMT222

Product Overview
Turning Insert: VBMT222LF KC5010, Solid Carbide TiAlN Coated, Neutral, 11.07 mm Long, 1/4" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series Screw-On
