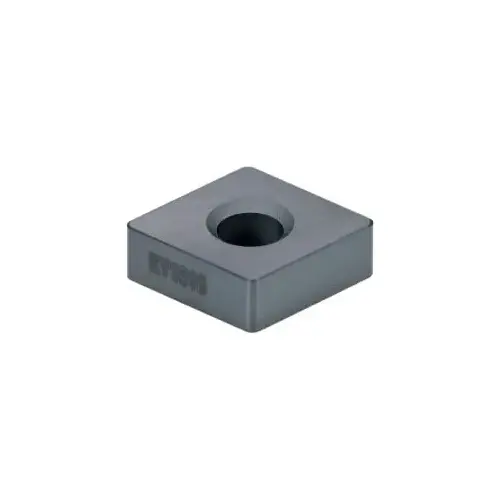

Kennametal 1881132-XCP5 Turning Insert: CNGA432T0820 KY1615, Ceramic - pack of 5

Item #: 1881132-XCP5 by Kennametal

Brand: Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$217.00

/package
SAVE UP TO 21.70
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

T-Land

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Ceramic

Series

KENLOC

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

1881132

Material Grade

Alumina TiC

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Flat Top

Insert Style

CNGA

Insert Size Code

432

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Flat Top

Manufacturer Grade

KY1615

ISO Size Code

120408

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

432

ISO Insert Code

CNGA120408

Proprietary Coating Designation

Uncoated

ANSI Insert Code

CNGA432

Product Overview
Turning Insert: CNGA432T0820 KY1615, Ceramic Uncoated, Neutral, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series KENLOC
