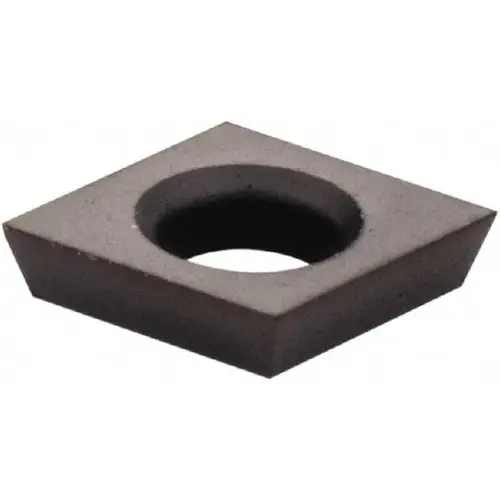

Kennametal 1937504 Turning Insert: CDHB120601 KC5025, Solid Carbide TiAlN

Item #: 1937504 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$25.81

/each
SAVE UP TO 2.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

4.30

Number of Cutting Edges

2

Standards

ANSI

Chipbreaker

Flat Top

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0020

Length (Decimal Inch - 4 Decimals)

0.1587

Manufacturers Catalog Number

1937504

Material Grade

C2

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.1563

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0492

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.1563

Insert Shape

Diamond

Rake Angle

0

Insert Style

CDHB

Insert Size Code

1206

Hole Diameter (Decimal Inch)

0.0840

Relief Angle

15

Inscribed Circle (Inch)

5/32

Hole Diameter (Mm) ( - 0 Decimals)

2.13

Maximum Depth of Cut (mm)

1.25

Manufacturer Grade

KC5025

Product Overview
Turning Insert: CDHB120601 KC5025, Solid Carbide TiAlN Coated, Neutral, 4.03 mm Long, 5/32" Inscribed Circle, 0.0039" Corner Radius, 80 degree Diamond, Series Screw-On
