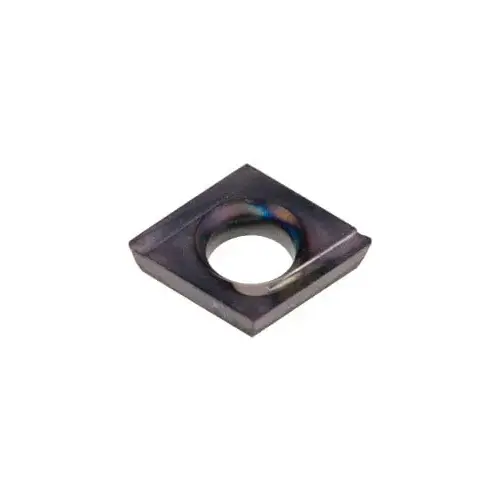

CDHH120605L KC5010 Carbide Turning Insert - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1937512-XCP5 CDHH120605L KC5010 Carbide Turning Insert - pack of 5

Item #: 1937512-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$129.05

/package
SAVE UP TO 12.91
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 56 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

4.30

Number of Cutting Edges

2

Standards

ANSI

Chipbreaker

Common

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0079

Length (Decimal Inch - 4 Decimals)

0.1587

Manufacturers Catalog Number

1937512

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.1563

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0492

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.1563

Corner Radius (Inch)

1/128

Insert Shape

Diamond

Secondary Workpiece Material Code

N

Insert Style

CDHH

Insert Size Code

120605

Hole Diameter (Decimal Inch)

0.0840

Relief Angle

15

Inscribed Circle (Inch)

5/32

Hole Diameter (Mm) ( - 0 Decimals)

2.10

Maximum Depth of Cut (mm)

1.25

Manufacturer Grade

KC5010

Product Overview
CDHH120605L KC5010 Carbide Turning Insert TiAlN Finish, LH, 4.03mm Long, 5/32" Inscribed Circle, 0.0079" Corner Radius, 0.04" Thick, 80 degree Diamond, Series Screw-On
