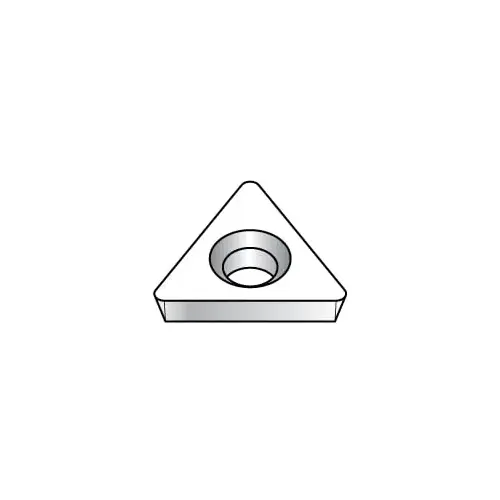

Kennametal 1937542-XCP10 Turning Insert: TDHB1280752 KC5025, Solid Carbide - pack of 10
Item #: 1937542-XCP10 by Kennametal
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length (mm)
7.40
Number of Cutting Edges
3
Standards
ANSI
Chipbreaker
Flat Top
Included Angle
60
Insert Material
Carbide
Series
Screw-On
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.2772
Manufacturers Catalog Number
1937542
Material Grade
C2
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2772
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.0492
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.1575
Corner Radius (Inch)
1/32
Insert Shape
Triangle
Rake Angle
0
Insert Style
TDHB
Insert Size Code
1280752
Hole Diameter (Decimal Inch)
0.0938
Relief Angle
15
Hole Diameter (Mm) ( - 0 Decimals)
2.39
Maximum Depth of Cut (mm)
1.25
Manufacturer Grade
KC5025
Product Overview
Turning Insert: TDHB1280752 KC5025, Solid Carbide TiAlN Coated, Neutral, 7.04 mm Long, 0.1598" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series Screw-On
