Milling Insert: ADKT1035PDERLC, KCPK30, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

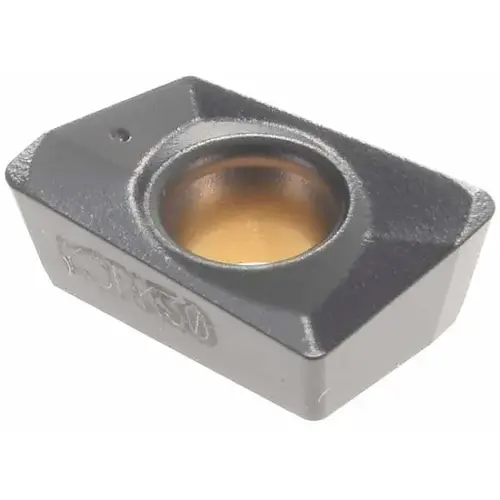

Kennametal 2209969 Milling Insert: ADKT1035PDERLC, KCPK30, Solid Carbide TiN

Item #: 2209969 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$36.80

/each
SAVE UP TO 3.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 271 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Steel

Insert Material

Solid Carbide

Series

ADKT

Coating Process

CVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.3937

Manufacturers Catalog Number

ADKT1035PDERLC

Material Grade

C1

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1378

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2638

Coating Classification

CVD

Insert Holding Method

Screw

Insert Hand

Right Hand

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Rake Angle

7

Chip Breaker

LC

Insert Style

ADKT

Insert Size Code

1622

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

15.00

Included Angle Degree

85

Hole Diameter (Mm) ( - 0 Decimals)

0.11

Manufacturer Grade

KCPK30

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Corner Radius (mm)

0.80

Iso Code

ADKT1035PDERLC

Product Overview
Milling Insert: ADKT1035PDERLC, KCPK30, Solid Carbide TiN, TiCN, Al2O3 Coated, 0.1378" Thick, 0.2638" Wide
