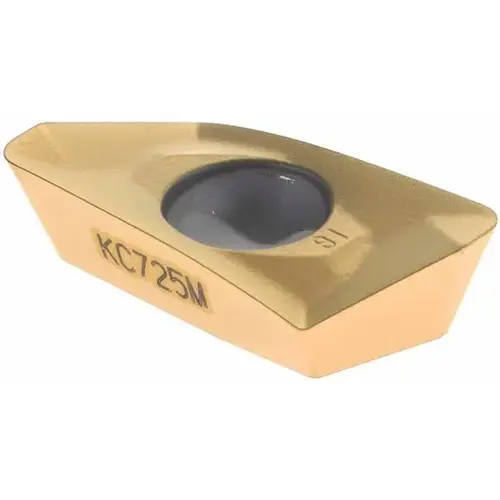

Kennametal 2271064 Milling Insert: EDPT180516PDERGD, KC725M, Solid Carbide TiAlN
Item #: 2271064 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
EP1816E
Number of Cutting Edges
2
Standards
ANSI
Insert Material
Solid Carbide
Series
EDPT
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0620
Length (Decimal Inch - 4 Decimals)
0.8580
Manufacturers Catalog Number
EDPT180516PDERGD
Material Grade
C5
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2170
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4310
Coating Classification
PVD
Insert Holding Method
Screw
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.4310
Corner Radius (Inch)
1/16
Insert Shape
Parallelogram
Chip Breaker
GD
Insert Style
EDPT
Insert Size Code
1816
Relief Angle
15.00
Included Angle Degree
70
Manufacturer Grade
KC725M
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Single
Cutter Series Compatibility
Mill 1-18
Length Range (Decimal Inch)
0.7000 to 0.9000
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Corner Radius (mm)
1.60
Iso Code
EDPT180516PDERGD
Product Overview
Milling Insert: EDPT180516PDERGD, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.217" Thick, 0.431" Wide
