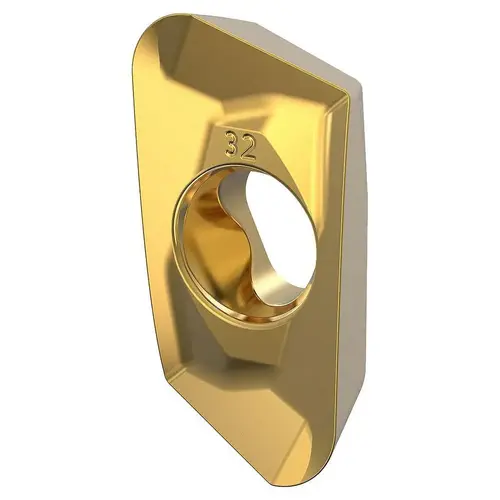

Kennametal 2271071 Milling Insert: EDPT180516PDERGD, KCPK30, Solid Carbide TiN

Item #: 2271071 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$37.03

/each
SAVE UP TO 3.70
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 110 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

1.60

Vendor Drop Ship

N

Iso Code

EDPT180516PDERGD

Width (Decimal Inch - 4 Decimals)

0.4310

Thickness (Decimal Inch - 4 Decimals)

0.2170

Relief Angle

15.00

Cutting Edge Style

Honed

Cutter Series Compatibility

Mill 1-18

Rake

Positive

Material Grade

C1

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Insert Holding Method

Screw

Coating/Finish

TiN

UNSPSC Code

23291601

Corner Radius (Inch)

1/16

Insert Style

EDPT

Manufacturers Catalog Number

EDPT180516PDERGD

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Manufacturer Grade

KCPK30

Length (Decimal Inch - 4 Decimals)

0.8580

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.4310

Coating Process

CVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0620

Chip Breaker

GD

Length Range (Decimal Inch)

0.7000 to 0.9000

Multi-use Tool

Yes

Coating Classification

CVD

Insert Size Code

1816

Included Angle Degree

70

Material Application

Steel

Number of Cutting Edges

2

ANSI Code

EP1816E

Series

EDPT

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: EDPT180516PDERGD, KCPK30, Solid Carbide TiN, TiCN, Al2O3 Coated, 0.217" Thick, 0.431" Wide
