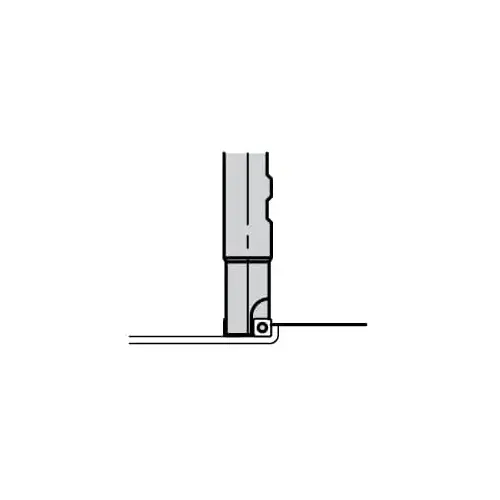

Kennametal 2273388 Milling Insert: EDPT180548PDERGD, KC725M, Solid Carbide TiAlN
Item #: 2273388 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Insert Material
Solid Carbide
Corner Radius (mm)
4.80
Vendor Drop Ship
N
Iso Code
EDPT180548PDERGD
Width (Decimal Inch - 4 Decimals)
0.4260
Thickness (Decimal Inch - 4 Decimals)
0.2170
Relief Angle
15.00
Cutting Edge Style
Honed
Cutter Series Compatibility
Mill 1-18
Rake
Positive
Material Grade
C5
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Insert Holding Method
Screw
Coating/Finish
TiAlN
UNSPSC Code
23291601
Insert Style
EDPT
Manufacturers Catalog Number
EDPT180548PDERGD
Insert Hand
Right Hand
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Manufacturer Grade
KC725M
Length (Decimal Inch - 4 Decimals)
0.7950
Standards
ANSI
Inscribed Circle (Decimal Inch)
0.4260
Coating Process
PVD
Primary Workpiece Material
Steel
Corner Radius (Decimal Inch)
0.1890
Chip Breaker
GD
Length Range (Decimal Inch)
0.7000 to 0.9000
Multi-use Tool
Yes
Coating Classification
PVD
Insert Size Code
1848
Included Angle Degree
70
Material Application
Steel
Number of Cutting Edges
2
ANSI Code
EP1848E
Series
EDPT
Insert Shape
Parallelogram
Single or Double Sided Insert
Single
Primary Workpiece Material Code
P
Product Overview
Milling Insert: EDPT180548PDERGD, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.217" Thick, 0.426" Wide
