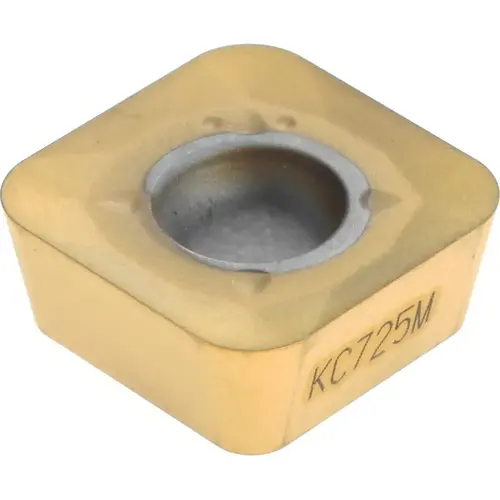

Milling Insert: SPCT10T320ENLD2, KC725M, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 2383590-XCP5 Milling Insert: SPCT10T320ENLD2, KC725M, Solid Carbide - pack of 5

Item #: 2383590-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$162.80

/package
SAVE UP TO 16.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 29 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

2.00

Vendor Drop Ship

N

Iso Code

SPCT10T320ENLD2

Thickness (Decimal Inch - 4 Decimals)

0.1563

Relief Angle

11.00

Material Grade

C5

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Insert Holding Method

Screw

Coating/Finish

TiN

UNSPSC Code

23291601

Corner Radius (Inch)

5/64

Insert Style

SPCT

Manufacturers Catalog Number

SPCT10T320ENLD2

Insert Hand

Neutral

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Manufacturer Grade

KC725M

Inscribed Circle (Inch)

1/2

Inscribed Circle (mm)

10.00

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0787

Hole Diameter (Decimal Inch)

0.1339

Chip Breaker

LD2

Coating Classification

PVD

Insert Size Code

31255

Thickness (Inch)

5/32

Included Angle Degree

90

Material Application

Steel

Series

SPCT

Hole Diameter (Mm) ( - 0 Decimals)

0.13

Insert Shape

Square

Primary Workpiece Material Code

P

Product Overview
Milling Insert: SPCT10T320ENLD2, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 5/32" Thick
