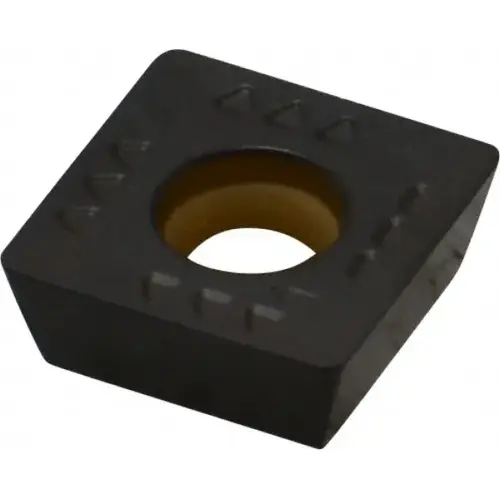

Milling Insert: SDET1204PDELGB2, KCPK30, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 2390283-XCP5 Milling Insert: SDET1204PDELGB2, KCPK30, Solid Carbide - pack of 5

Item #: 2390283-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$200.38

/package
SAVE UP TO 20.04
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Steel

Insert Material

Solid Carbide

Series

SDET

Coating Process

CVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

SDET1204PDELGB2

Material Grade

C1

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Coating Classification

CVD

Insert Holding Method

Screw

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Square

Chip Breaker

GB2

Insert Style

SDET

Insert Size Code

43

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

15.00

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

0.17

Manufacturer Grade

KCPK30

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Corner Radius (mm)

0.80

Iso Code

SDET1204PDELGB2

Product Overview
Milling Insert: SDET1204PDELGB2, KCPK30, Solid Carbide TiN, TiCN, Al2O3 Coated, 3/16" Thick
