Turning Insert: DPMT2151LF KC5025, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 2425791 Turning Insert: DPMT2151LF KC5025, Solid Carbide TiAlN

Item #: 2425791 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$24.49

/each
SAVE UP TO 2.45
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

2425791

Material Grade

C2

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6104

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

7.75

Corner Radius (Inch)

1/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

P

Rake Angle

5

Full Radius

No

Insert Shape Code

D

Chip Breaker

LF

Insert Style

DPMT

Insert Size Code

2151

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KC5025

ISO Size Code

070204

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

2151

ISO Insert Code

DPMT070204

ANSI Insert Code

DPMT2151

Product Overview

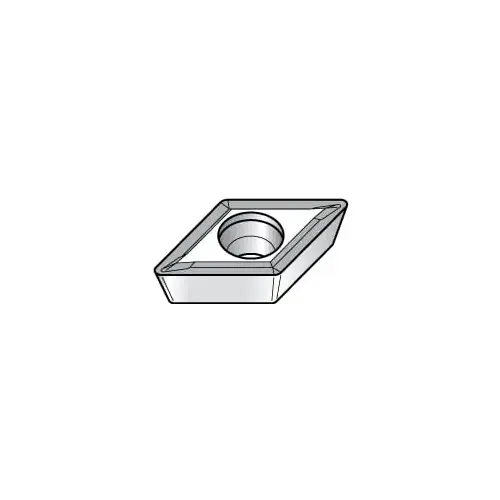

Turning Insert: DPMT2151LF KC5025, Solid Carbide TiAlN Coated, Neutral, 7.75 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series Screw-On
