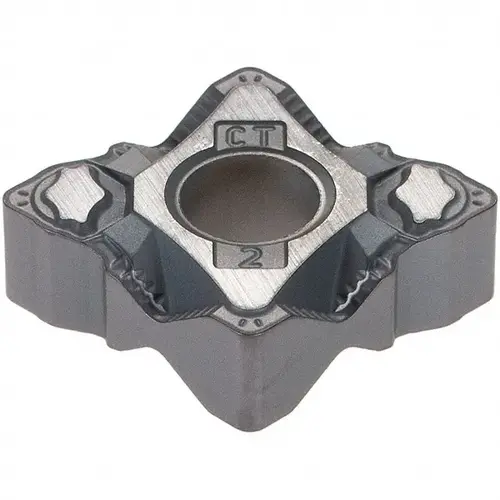

Kennametal 2429851 Turning Insert: CNMG432CT KC5010, Solid Carbide TiAlN

Item #: 2429851 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$24.31

/each
SAVE UP TO 2.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 329 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

2429851

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

15

Full Radius

No

Insert Shape Code

C

Chip Breaker

CT

Secondary Workpiece Material Code

N

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Roughing

Manufacturer Grade

KC5010

ISO Size Code

120408

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

432

ISO Insert Code

CNMG120408

ANSI Insert Code

CNMG432

Product Overview
Turning Insert: CNMG432CT KC5010, Solid Carbide TiAlN Coated, Neutral, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series KENLOC
