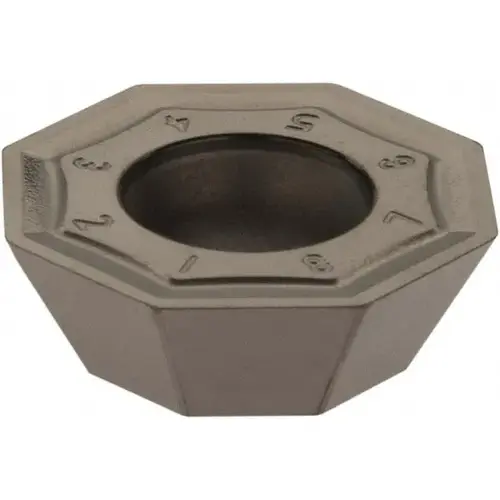

Kennametal 2458833-XCP10 Milling Insert: OFKT06L5AFFNLNJ, KC410M, Solid Carbide - pack of 10
Item #: 2458833-XCP10 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Material Application
Non-Ferrous Metal
ANSI Code
OFKT53AFFN4LNJ
Number of Cutting Edges
8
Standards
ANSI
Insert Material
Solid Carbide
Series
OFKT
Coating Process
PVD
Coating/Finish
Titanium Diboride
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.5787
Manufacturers Catalog Number
OFKT06L5AFFNLNJ
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Thickness (Decimal Inch - 4 Decimals)
0.1969
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5787
Coating Classification
PVD
Insert Holding Method
Screw
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.5787
Corner Radius (Inch)
1/32
Insert Shape
Octagon
Rake Angle
0
Chip Breaker
LN
Insert Style
OFKT
Insert Size Code
53
Hole Diameter (Decimal Inch)
0.2165
Relief Angle
25.00
Included Angle Degree
135
Hole Diameter (Mm) ( - 0 Decimals)
0.22
Manufacturer Grade
KC410M
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Single
Cutter Series Compatibility
KSOM
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.1850 to 0.2000
Corner Radius (mm)
0.80
Iso Code
OFKT06L5AFFNLNJ
Product Overview
Milling Insert: OFKT06L5AFFNLNJ, KC410M, Solid Carbide TiB2 Coated, 0.1969" Thick
