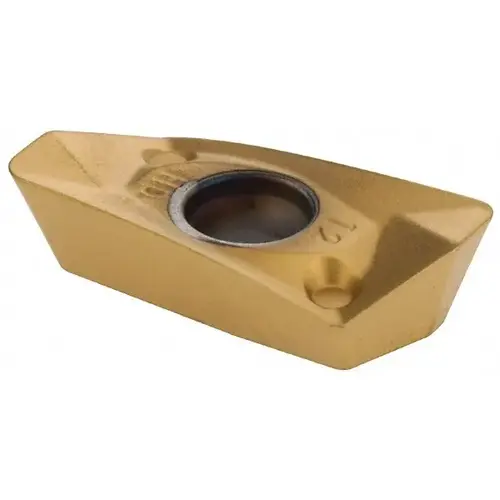

Kennametal 3033724 Milling Insert: EDPT140412PDERHD, KC725M, Solid Carbide TiAlN

Item #: 3033724 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$34.64

/each
SAVE UP TO 3.46
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 123 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

1.20

Vendor Drop Ship

N

Iso Code

EDPT140412PDERHD

Width (Decimal Inch - 4 Decimals)

0.3291

Thickness (Decimal Inch - 4 Decimals)

0.1772

Relief Angle

15.00

Cutting Edge Style

Honed

Cutter Series Compatibility

Mill 1-14

Rake

Positive

Material Grade

C5

Thickness Range (Decimal Inch)

0.1750 to 0.1850

Insert Holding Method

Screw

Coating/Finish

TiAlN

UNSPSC Code

23291601

Corner Radius (Inch)

3/64

Insert Style

EDPT

Manufacturers Catalog Number

EDPT140412PDERHD

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Manufacturer Grade

KC725M

Length (Decimal Inch - 4 Decimals)

0.6882

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3291

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0472

Hole Diameter (Decimal Inch)

0.1339

Chip Breaker

HD

Length Range (Decimal Inch)

0.6500 to 0.7000

Multi-use Tool

Yes

Coating Classification

PVD

Insert Size Code

1412

Included Angle Degree

70

Material Application

Steel

Number of Cutting Edges

2

ANSI Code

EP1412EHD

Series

EDPT

Hole Diameter (Mm) ( - 0 Decimals)

0.13

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: EDPT140412PDERHD, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.1772" Thick, 0.3291" Wide
