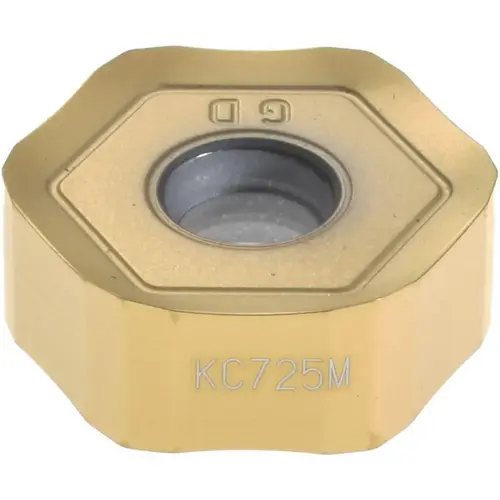

Milling Insert: HNGJ0905ANSNGD, KC725M, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 3331176 Milling Insert: HNGJ0905ANSNGD, KC725M, Solid Carbide TiAlN

Item #: 3331176 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$55.23

/each
SAVE UP TO 5.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 527 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

ANSI Code

HNGJ535ANSNGD

Number of Cutting Edges

12

Standards

ANSI

Insert Material

Solid Carbide

Series

HNGJ

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0470

Length (Decimal Inch - 4 Decimals)

0.6250

Length (Inch)

5/8

Manufacturers Catalog Number

HNGJ0905ANSNGD

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2190

Thickness (Inch)

7/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6250

Width (Inch)

5/8

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5000

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

3/64

Insert Shape

Hexagon

Chip Breaker

GD

Insert Style

HNGJ

Insert Size Code

535

Relief Angle

0.00

Included Angle Degree

120

Inscribed Circle (Inch)

5/8

Manufacturer Grade

KC725M

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Single or Double Sided Insert

Double

Cutter Series Compatibility

Dodeka

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Corner Radius (mm)

1.20

Iso Code

HNGJ0905ANSNGD

Product Overview
Milling Insert: HNGJ0905ANSNGD, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.219" Thick, 5/8" Wide
