Jobber Drill: #12, 140 deg Point, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

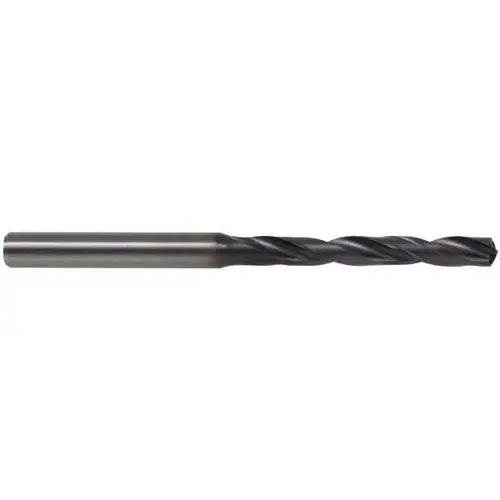

Kennametal 3640747 Jobber Drill: #12, 140 deg Point, Solid Carbide AlTiN

Item #: 3640747 by Kennametal

See reviewsSee reviews
See reviews summary

$244.96

/each
SAVE UP TO 24.50
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

82.00

Number of Flutes

2

Cutting Direction

Right Hand

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Coating/Finish

AlTiN

Coolant Through

Yes

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.1890

Drill Bit Size (Wire)

#12

Drill Bit Size Range (Decimal Inch)

0.1500 - 0.2000

Drill Point Angle

140 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

1.7323

Flute Length (mm)

44.00

Overall Length (Decimal Inch)

3.2283

Primary Workpiece Material

Steel

Shank Diameter (Decimal Inch)

0.2344

Shank Diameter (Inch)

15/64

Shank Diameter (mm)

6

Shank Length (mm)

36

UNSPSC Code

23241634

Vendor Drop Ship

Y

Drill Bit Diameter Tolerance

0.004 to 0.016 mm

Maximum Drilling Depth (mm)

35.00

Specification Designation

DIN

Specification Number

DIN 6537K

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

0.90

Product Overview
Jobber Drill: #12, 140 deg Point, Solid Carbide TiAlN Coated, 82.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank,
