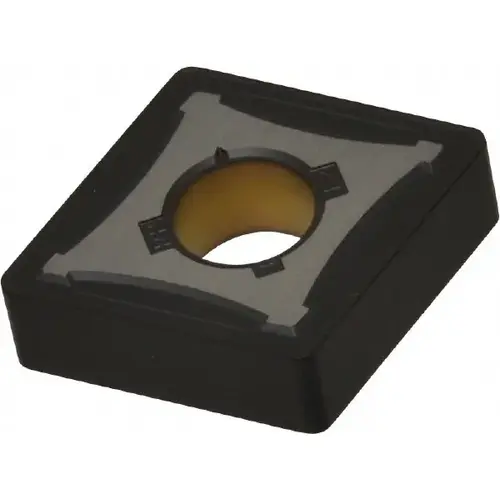

Turning Insert: CNMG643RP KCP25, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 3751650-XCP5 Turning Insert: CNMG643RP KCP25, Solid Carbide - pack of 5

Item #: 3751650-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$244.21

/package
SAVE UP TO 24.42
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

3751650

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7500

Width (Inch)

3/4

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7616

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

19.34

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

5

Full Radius

No

Insert Shape Code

C

Chip Breaker

RP

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3125

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

7.93

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Roughing

Manufacturer Grade

KCP25

ISO Size Code

190612

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

643

ISO Insert Code

CNMG190612

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CNMG643

Product Overview
Turning Insert: CNMG643RP KCP25, Solid Carbide TiCN & Al2O3 Coated, 19.34 mm Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series KENLOC
