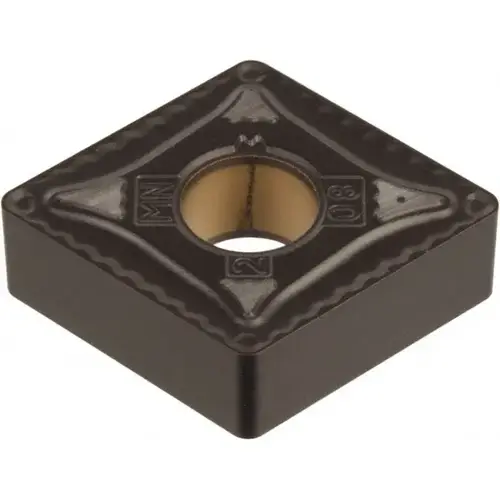

Kennametal 3751811 Turning Insert: CNMG432MN KCP40, Solid Carbide TiN

Item #: 3751811 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$24.31

/each
SAVE UP TO 2.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 125 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

KENLOC

Coating Process

MTCVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

3751811

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

MN

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Manufacturer Grade

KCP40

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

Multilayer Coating

Product Overview
Turning Insert: CNMG432MN KCP40, Solid Carbide TiN, TiCN & Al2O3 Coated, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series KENLOC
