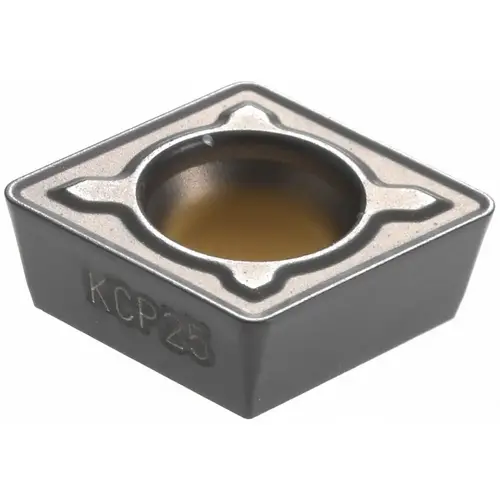

Turning Insert: CPMT3252MF KCP25, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 3753415-XCP5Click To Copy Turning Insert: CPMT3252MF KCP25, Solid Carbide - pack of 5

Item #: 3753415-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$140.62

/package
SAVE UP TO 14.06

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Manufacturer Grade

KCP25

ISO Size Code

09T308

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

Cutting Edge Style

Chamfered

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

3753415

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3808

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.67

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

MF

Insert Style

CPMT

Insert Size Code

3252

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

ANSI Size Code

3252

ISO Insert Code

CPMT09T308

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CPMT3252

Product Overview
Turning Insert: CPMT3252MF KCP25, Solid Carbide TiCN & Al2O3 Coated, 9.67 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Screw-On
