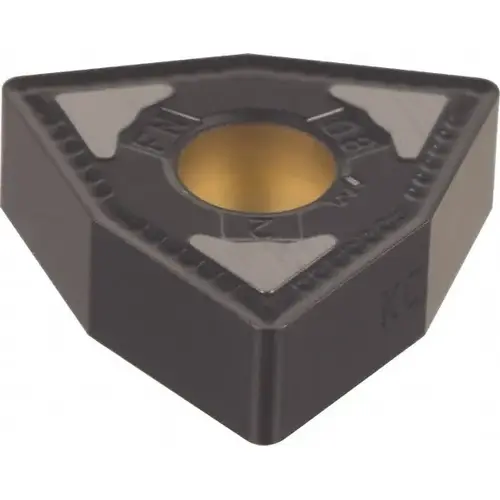

Kennametal 3753726 Turning Insert: WNMG432FN KCP25, Solid Carbide TiCN

Item #: 3753726 by Kennametal

See reviewsSee reviews
See reviews summary

$24.72

/each
SAVE UP TO 2.47
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Proprietary Coating Designation

Multilayer Coating

Length Range (Decimal Inch)

0.6500 - 0.7000

Manufacturer Grade

KCP25

Maximum Depth of Cut (mm)

1.25

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Multi-Use Application

Turning

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2031

Tolerance Code

M

Insert Size Code

432

Insert Style

WNMG

Chip Breaker

FN

Insert Shape Code

W

Full Radius

No

Rake Angle

10

Clearance Code

N

Insert Shape

Trigon

Corner Radius (Inch)

1/32

Insert Length (mm)

8.69

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.0492

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.6840

Insert Holding Method

Clamp

Coating Classification

CVD

Width (Decimal Inch - 4 Decimals)

0.684

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C2

Manufacturers Catalog Number

3753726

Corner Radius (Decimal Inch)

0.0313

Coating/Finish

TiCN

Coating Process

MTCVD

Series

KENLOC

Insert Material

Carbide

Included Angle

80

Standards

ANSI

Number of Cutting Edges

6

Cutting Edge Style

Honed

Product Overview
Turning Insert: WNMG432FN KCP25, Solid Carbide TiCN & Al2O3 Coated, 8.69 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series KENLOC
