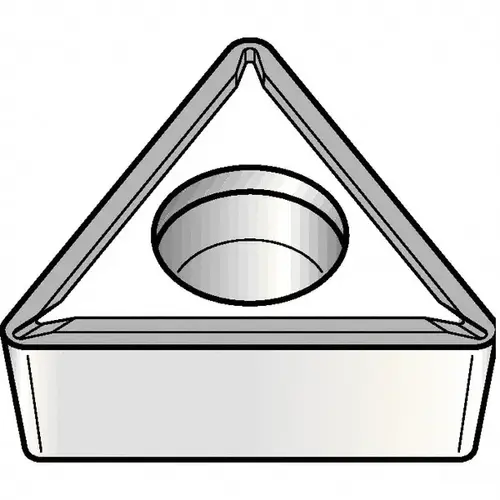

Kennametal 3755522 Turning Insert: TPMT432LF KCK20, Solid Carbide AlTiN

Item #: 3755522 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$34.99

/each
SAVE UP TO 3.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 115 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

3755522

Material Grade

K10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.8661

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

P

Rake Angle

5

Full Radius

No

Insert Shape Code

T

Chip Breaker

LF

Insert Style

TPMT

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2165

Relief Angle

11

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.50

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KCK20

ISO Size Code

220408

Grade Characteristics

Steel (P) - High Wear-Resistance

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

432

ISO Insert Code

TPMT220408

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

TPMT432

Product Overview
Turning Insert: TPMT432LF KCK20, Solid Carbide TiCN & Al2O3 Coated, 22 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series Screw-On
