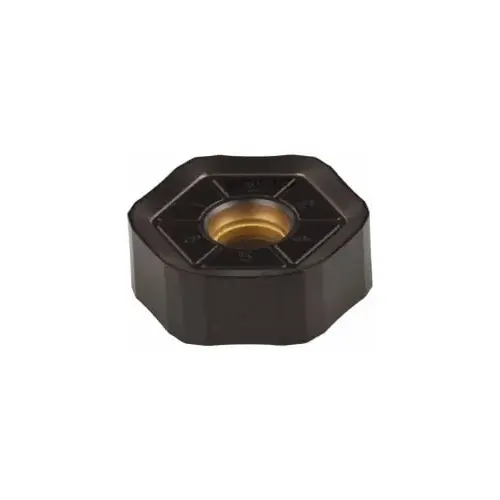

Kennametal 3763185-XCP5 Milling Insert: HNPJ0905ANSNHD, KCK15, Solid Carbide - pack of 5
Item #: 3763185-XCP5 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Cast Iron
ANSI Code
HNPJ535ANSNHD
Number of Cutting Edges
12
Standards
ANSI
Insert Material
Solid Carbide
Series
HNPJ
Coating Process
MTCVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.0472
Length (Decimal Inch - 4 Decimals)
0.6250
Length (Inch)
5/8
Manufacturers Catalog Number
HNPJ0905ANSNHD
Material Grade
C1
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
Thickness (Decimal Inch - 4 Decimals)
0.2150
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6250
Width (Inch)
5/8
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3383
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.6250
Corner Radius (Inch)
3/64
Insert Shape
Hexagon
Rake Angle
15
Chip Breaker
HD
Insert Style
HNPJ
Insert Size Code
535
Relief Angle
0.00
Included Angle Degree
120
Inscribed Circle (Inch)
5/8
Manufacturer Grade
KCK15
Inscribed Circle Range (Decimal Inch)
0.6000 to 0.7000
Single or Double Sided Insert
Double
Cutter Series Compatibility
Dodeka
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Corner Radius (mm)
1.20
Iso Code
HNPJ0905ANSNHD
Product Overview
Milling Insert: HNPJ0905ANSNHD, KCK15, Solid Carbide TiN, TiCN, Al2O3 Coated, 0.215" Thick
