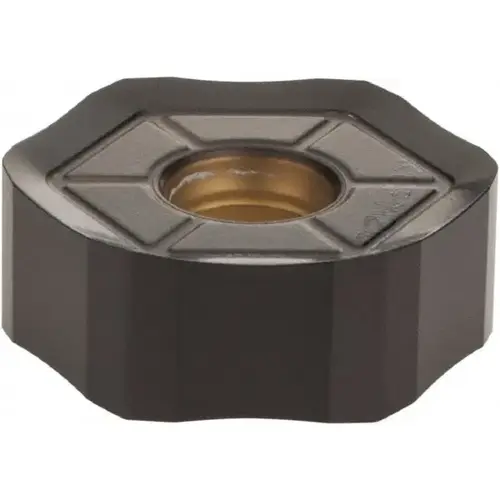

Kennametal 3873497 Milling Insert: HNGJ0905ANSNGD, KCPM20, Solid Carbide TiN

Item #: 3873497 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$59.83

/each
SAVE UP TO 5.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 87 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed T-Land

Material Application

Steel

ANSI Code

HNGJ535ANSNGD

Number of Cutting Edges

12

Standards

ANSI

Insert Material

Solid Carbide

Series

HNGJ

Coating Process

MTCVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0469

Length (Decimal Inch - 4 Decimals)

0.6250

Length (Inch)

5/8

Manufacturers Catalog Number

HNGJ0905ANSNGD

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2188

Thickness (Inch)

7/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6250

Width (Inch)

5/8

Coating Classification

CVD

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

3/64

Insert Shape

Hexagon

Rake Angle

15

Chip Breaker

GD

Insert Style

HNGJ

Insert Size Code

535

Hole Diameter (Decimal Inch)

0.1969

Relief Angle

0.00

Included Angle Degree

120

Inscribed Circle (Inch)

5/8

Hole Diameter (Mm) ( - 0 Decimals)

0.20

Manufacturer Grade

KCPM20

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Single or Double Sided Insert

Double

Cutter Series Compatibility

Dodeka

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Corner Radius (mm)

1.19

Iso Code

HNGJ0905ANSNGD

Product Overview
Milling Insert: HNGJ0905ANSNGD, KCPM20, Solid Carbide TiN, MT, TiCN, Al2O3 Coated, 7/32" Thick
